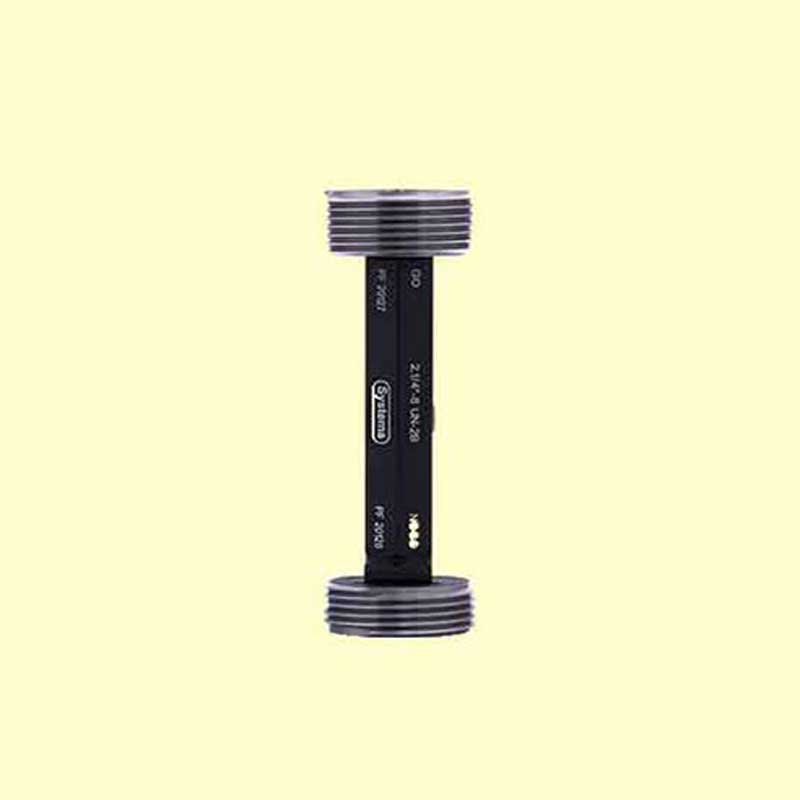

- Go/No-Go Thread Plug Gauges: These are the most commonly used thread plug gauges and have two ends, such as “Go” and "No-Go." The “Go” thread can fit in the specific shaft without any external force and effort, and “No-Go” should not fit in the holes and shaft. This mechanism gives more clarity for the perfect fitting and tolerance meetings.
- Tapered Thread Plug Gauges: For securing the tight seals in the pipeline systems and fitting, our tapered thread gauges are mostly used. These are the specialized tools that have tampered threads. The taper helps secure tight threads; the diameter decreases and creates less friction while moving to prevent any leaks.
- Adjustable Thread Plug Gauge: These are our most customizable threads that not only measure the diameter or thread in the shaft but also check the depth of the threaded hole. It has fixed and adjustable gauges, which have fixed lengths and depths.
- Combined Thread Plug Gauges: These gauges are used to combine straight and tapered gauges in one tool and check the depth and diameter of the combination gauges. These combination gauges can check the accuracy of multiple types and save time and effort.
Technical Specifications of our Thread Plug Gauge:
We have attached a technical sheet of our thread plug gauge for more information, which will guide you to excellent results in your operations:
| Parameter |
Description |
Units |
Typical Range |
| Technical Specifications |
Defines thread form, diameter, pitch, length, tolerance class, etc. |
ISO, ANSI |
Varies |
| Material |
High speed Stainless Steel, Cast iron |
N/A |
N/A |
| Hardness |
Ensures gauge wear resistance |
HRC |
58-65 |
| Tolerance |
Deviation allowed from nominal thread dimensions |
µm |
As per standards |
| Finishing |
Surface finish of the gauge |
Ra |
0.2-0.4 |
Features and Benefits of Using Our Thread Plug Gauge
To maintain more accuracy in the various industrial projects, we have added multiple types of features in our thread plug gauge, which will increase productivity:
- Accuracy: As a Thread Plug Gauge Manufacturers, Our thread plug gauges are made with accurate dimensions, sizes, and shapes that can fit in any type of equipment and catch the accurate depth of the hole and shaft. It secures the connection with tight seals and prevents any leakages.
- Lower Maintenance: We have added high-quality materials to our thread plug gauge, such as cast iron, stainless steel, and aluminum. Higher durability and anti-corrosion properties give more performance to the applied machines and keep maintenance costs low.
- Calibration Capability: Our thread plug gauge has the maximum capability to maintain accurate measurements in the specific thread size. As per the requirements of every machine and component, the calibration method keeps the gauge adjusted in different sizes and types.
- Ergonomic Design: These are designed with ergonomic handling methods, and the weight is perfectly balanced. Our all types of thread plug gauges are designed to reduce fatigue and discomfort.
Applications of our Thread Plug Gauge
Due to its multiple types of features and the quality of the materials, our thread plug gauge is used in various industrial applications, such as:
- Automotive Industry: The thread plug gauge is highly used in the automotive industry for measuring the threads in the engine blocks, cylinder heads, and engine components.
- Aerospace Industry: These are used for measuring the aircraft parts threads, such as engine components, landing gear, and multiple structural components.
- Oil and Gas: For measuring the threads on pipes, fittings, and multiple equipment in the oil and gas, our gauges are highly used.
- Construction: In the construction industry, these are used for measuring the threads on construction materials such as bolts, nuts, and fasteners.
- Power Generation: For manufacturing complex and large parts such as turbines, generators, and other multiple components in the power generation industries, our thread gauge pipes are mostly used.
Being one of the top thread plug gauge manufacturers in India, suppliers, and exporters in Pune, India, we as Systemgauges & Tools India Pvt. Ltd. are dedicated to improving the quality and accuracy of the machines or components in multiple industries.
These are made with high-quality materials such as stainless steel, cast iron, and aluminum for more accuracy and durability. The perfect design and finishing help increase productivity. Contact us today for more information!
